pi-prefix-cache-compaction

Faster Pi compaction on any model server with automatic prefix caching, self-hosted (vLLM, SGLang, llama.cpp, oMLX) or hosted (e.g. DeepSeek), by reusing the server's prefix cache instead of re-reading the whole conversation. Works with the two wire formats Pi custom providers use: anthropic-messages and openai-completions.

Optional background mode (0.5.0) prepares the summary and the post-compaction cache before Pi compacts. Measured on a local 27B model, Pi's auto-compaction then took 0.1–3 s instead of minutes; when the background work is not finished yet, Pi waits for the remainder (see Limits).

The problem

Pi's built-in compaction serializes the history into one new user message under a different system prompt. To the server that is a brand-new prompt: the prefix cache misses completely and the whole history (typically 100k–190k tokens) is prefilled from scratch, then the summary is generated with your normal thinking level. On hosted APIs that costs seconds. On local GPUs it costs minutes, every time the context fills.

Measured on 2× RTX 3090 (vLLM, Qwen3.8-27B W4A16, TP=2), across 132 default compactions:

	Pi default (median)	This extension
Tokens re-read cold per compaction	142,106	~0 (prefix cache hit)
Compaction time	229 s (p90 489 s)	86 s at 215k context
First turn after compaction	69 s	35 s without warm-up; 1.8 s with warm-up (47k-token smoke test, thinking xhigh)

On a hosted API the win is smaller in seconds but the cache hit is the same: against DeepSeek's API a 56k-token compaction took 3 s with 56,192 of 56,216 prompt tokens served from cache (see Verified against).

How it works

1. Capture. Every real provider request is kept in memory (before_provider_request), per session.
2. Compact from cache. On session_before_compact the extension re-sends that exact request (same system prompt, tools, messages, thinking settings, routing headers) with one summarize instruction appended. Credentials are resolved at request time through Pi's model registry, exactly as for a real turn, and attached the way the SDK would (x-api-key for Anthropic Messages, Authorization: Bearer for OpenAI). The prefix is byte-for-byte what the server just processed, so only the instruction is prefilled; the time left is generating the summary.
3. Warm-up. After compaction, it sends a 1-token request through Pi's model registry with the new context (built by Pi's own converter, with the captured system prompt, tools and thinking settings), so the summary and kept messages are already cached when you send the next turn.
4. Background mode (optional, background: true). Steps 2 and 3 still cost time while Pi waits. In background mode the summary is made earlier, after the first turn past backgroundAt (70 % of the window), while the session keeps running. When Pi auto-compacts at its threshold, the extension returns that summary at once and keeps every entry after the summarized request verbatim. The context Pi will have after that compaction (system, summary, kept entries) is known as soon as the summary exists, and only grows at the end. So it is pre-warmed then, and extended after every turn; each extension prefills only the new turns. When Pi compacts, the first request finds it cached. If a pre-warm is still running at that moment, the compaction waits for it: a request that races an in-flight pre-warm of the same prefix prefills everything itself (measured on vLLM: 32.6 s racing vs 3.3 s after the pre-warm finished, 30k-token context).

at 70 %:  [ system | history up to the summary point | ... ]   summary made in the background
at Pi's threshold:
before:   [ system | history up to the summary point | everything after it ]
after:    [ system | summary                         | everything after it ]   (summary already made, context already cached)

The prompt is never modified, only extended. The summary request may set the output cap (max_tokens or max_completion_tokens, whichever the captured request used) and the streaming flags; every field that can reach the rendered prompt is copied verbatim and checked before sending (assertPrefixPreserved), so a mistake fails fast into Pi's default instead of silently costing a cold re-prefill.

That matters most for thinking, because the toggle differs per model family and servers derive one field from another:

Model family	Toggle	Default
Qwen3 / Qwen3.x	chat_template_kwargs.enable_thinking (or top-level enable_thinking on OpenAI endpoints)	on
DeepSeek-V3.1, IBM Granite 3.2	chat_template_kwargs.thinking	off
Gemma 4	enable_thinking or reasoning_effort	off
Holo2	thinking: false disables	on
DeepSeek R1, GLM-4.5, MiniMax-M2, ERNIE, Hunyuan, Cohere Command A	parser-specific	varies

vLLM also injects enable_thinking from reasoning_effort (low/medium/high → true, none → false). And templates like Qwen3.x render the effort text at the start of the system prompt, so flipping any of these re-prefills the entire conversation: an earlier build that forced thinking off turned a 245k-token compaction into a 5-minute cold read that then timed out. The summary therefore runs at the session's own thinking level, and the prompt simply asks for brief reasoning.

The summary request uses node:http rather than fetch, because fetch gives up on a response that sends no bytes for 300 s, which a long prefill or thinking phase on a local GPU can do. It is still bounded: after 600 s with no bytes at all (a proxy that stopped relaying without closing the connection) it gives up and Pi's default runs, instead of leaving "Auto-compacting" spinning forever.

Anything unexpected makes it step aside and Pi's default compaction runs: overflow recovery, no captured request yet (a fresh session, or persist turned off), a capture that belongs to a different model or to a pre-fallback-compaction history, too little room left in the window, the model trying to call a tool, a summary cut off mid-stream, or any HTTP/stream error.

Verified against

Each row is a full run of scripts/rpc-smoke.mjs (real turns, compaction through this extension, warm-up, one turn after) on the 0.3.0 code. "From cache" is what the server's own usage report said about the summary request.

Server	Wire format	Pi	Thinking	Prompt tokens from cache
llama.cpp --api-key (401 without key), Qwen3-4B	anthropic-messages	0.86.0	off	26,222 / 26,226
llama.cpp, same server	openai-completions	0.86.0	off	26,323 / 26,327
vLLM, Qwen3.8-27B, Bearer-only proxy	anthropic-messages	0.86.0	off	hit (vLLM omits the count by default)
vLLM, same	openai-completions	0.86.0	high	hit (60k tokens compacted in 19 s)
DeepSeek API (/anthropic)	anthropic-messages	0.85.1, 0.86.0	off, high	56,192 / 56,216
DeepSeek API (/v1)	openai-completions	0.85.1, 0.86.0	off, high	56,192 / 56,313
oMLX (Apple Silicon, MPS), Qwen3.8-27B AWQ	openai-completions	0.87.0	off	18,432 / 18,981
oMLX, same stack, live coding session	openai-completions	0.87.0	adaptive	131,072 / 135,414
LiteLLM proxy → local vLLM, Qwen3.8-27B (2× RTX 3090, TP=2)	anthropic-messages	0.99.1	off	3 cycles, 51.6–56.9k prompt (proxy strips the cache count)

The two oMLX rows were run with Pi 0.87.0 in RPC mode in an isolated PI_CODING_AGENT_DIR against oMLX 0.6.4 (engines mlx 0.32.0 locally and 0.31.3 on the second Apple Silicon host): the first is a scripted smoke (compaction at reason: "threshold" went through the extension, warm-up included), the second a real /compact in an everyday long-running session on qwen3.8-flash with thinking adaptive — 96.8% of the 135k-token summary request was served from cache. oMLX specifics worth knowing:

• Prefix caching is on by default, no flag (hot RAM + an SSD tier). Cache blocks are chain-hashed 2,048-token units, which is why the cache counts above are exact multiples of 2,048 with only the tail cold — and why an appended instruction keeps the hit.
• Cached blocks survive model unload/reload (and a server restart): the first compaction after a reload still hits the SSD tier.
• usage.prompt_tokens_details.cached_tokens is reported on the OpenAI wire, including over SSE, on both engine versions — no extra server flag is needed to see the cache count.
• For block-level verification oMLX exposes /admin/api/cache/probe (and cache/stats / cache/efficiency), which uses the scheduler's own block hashing.

Multi-compaction sessions: --cycles 4 on DeepSeek, both wire formats, thinking high. All eight compactions went through the extension with a full cache hit (44,672 to 68,864 prompt tokens served from cache per request), and two planted facts survived every summary-of-a-summary.

Not verified: SGLang (needs an NVIDIA GPU; not run here). Not implemented: openai-responses, a different payload and stream format, which is what Pi's built-in hosted OpenAI provider uses.

Not verified on oMLX: multi-compaction --cycles runs (single compactions, incl. one live long session, are covered above).

Related work

The same idea, appending the summarize instruction to the last real request so the prefix stays cached, exists for other wire formats:

• pisceslailai/deepseek-kvcache: DeepSeek's hosted API (OpenAI wire format). Technique credit for this package.
• yuan-/pi-kvc: llama.cpp / LM Studio over openai-completions, with a manual /kvc command.

Neither is on npm. This package covers both anthropic-messages and openai-completions, and adds the model-bound and stale-capture checks, the prefix-preservation assertion, request-time credential resolution and the post-compaction warm-up.

Requirements

• Pi coding-agent ≥ 0.85 (tested on 0.85.1, 0.86.0, 0.87.0, 0.99.1 and 1.1.0), Node ≥ 22.19. Background mode and the status pill were tested on 1.1.0.
• Caveat: a proxy in between (e.g. LiteLLM) may strip usage.prompt_tokens_details/cache_creation from responses — the extension still works (the server-side prefix cache is unaffected), but the "served from prefix cache" count in the notices will be absent.
• A custom provider with "api": "anthropic-messages" or "api": "openai-completions" pointing at a server with automatic prefix caching (vLLM --enable-prefix-caching, SGLang RadixAttention, llama.cpp --cache-reuse, oMLX by default). Authenticated endpoints work with the key configured as apiKey in models.json; authHeader: true is not required.
• A chat template that renders earlier turns the same whether or not a new user message follows. Templates that strip earlier reasoning after a new user message (for example Qwen3 with preserve_thinking off) still work, with a smaller cache hit.

Install

pi install npm:pi-prefix-cache-compaction
# or try it for one run
pi -e npm:pi-prefix-cache-compaction

Then /reload open sessions. Check with /prefix-compaction.

Upgrading from 0.3.x

pi update --extension npm:pi-prefix-cache-compaction

Then /reload open sessions (or restart them). Existing config files keep working. What changes without any config edit:

Since	Change	To opt out
0.4.0	The last request per session is kept on disk in ~/.pi/agent/cache/pi-prefix-cache-compaction/ (no credentials, pruned after 14 days), so a compaction right after resume still hits the cache.	"persist": false
0.4.0	Summaries are shorter (prompt asks for ~1,000–1,500 words).	—
0.4.0	A summary stream that sends nothing for 600 s is abandoned and Pi's default runs (was: hung forever).	—
0.5.0	A status pill in Pi's footer while a compaction, warm-up or background summary runs.	"statusBar": false

Background mode is off by default. To turn it on, add it to ~/.pi/agent/pi-prefix-cache-compaction.json (all projects) or <project>/.pi/pi-prefix-cache-compaction.json (one project), then /reload:

{ "background": true }

It starts working at the first turn past 70 % of the context window (backgroundAt); see How it works, step 4. "incremental": true is the other opt-in (experimental, Pi ≥ 0.99).

Configuration

Optional JSON, project overrides global:

• ~/.pi/agent/pi-prefix-cache-compaction.json
• <project>/.pi/pi-prefix-cache-compaction.json

{
  "enabled": true,
  "providers": [],
  "baseUrlIncludes": [],
  "baseUrlExcludes": ["api.anthropic.com"],
  "maxSummaryTokens": 16000,
  "minSummaryTokens": 4000,
  "promptOverheadTokens": 3000,
  "warmup": true,
  "notify": true,
  "statusBar": true,
  "incremental": false,
  "persist": true,
  "background": false,
  "backgroundAt": 0.7
}

• providers / baseUrlIncludes: restrict to specific providers or endpoints (empty = every anthropic-messages or openai-completions model not excluded).

• baseUrlExcludes: hosted Anthropic is excluded by default because its prompt caching needs explicit cache_control breakpoints, which this extension does not manage. Hosted APIs with automatic prefix caching work as-is (DeepSeek verified on both wire formats).

• There is no option to change thinking for the summary, by design — see below.

• The summary budget is min(maxSummaryTokens, contextWindow − tokensBefore − promptOverheadTokens); below minSummaryTokens Pi's default runs instead.

• persist (0.4.0, on by default): the last captured request per session is also kept on disk in ~/.pi/agent/cache/pi-prefix-cache-compaction/ (credentials are never written; files older than 14 days are pruned). A compaction that fires right after pi -c / resume, before any new turn, then replays the request the previous process sent — the prefix the server still has cached — instead of falling back to Pi's default. The file is dropped after every compaction, since it then describes pre-compaction history.

• incremental (0.4.0, experimental, off by default): on Pi ≥ 0.99, from the second compaction on Pi hands the extension a previousSummary plus a message window that excludes the pre-compaction history. When enabled, the summary request appends that previous summary and an update instruction so the model merges the new delta into the existing summary instead of re-summarizing everything, and the merged result is carried into the next compaction. Verified live with scripts/experiment.mjs experiments/incremental.json: it merges correctly and kept every planted fact, but two single runs disagreed on speed (−14 % and +44 % summary time), so a speed benefit is not shown and it stays opt-in.

• statusBar (on by default): live pill in Pi's footer, see What you see.

• background (0.5.0, experimental, off by default) and backgroundAt (default 0.7): see How it works, step 4.

  • The summary starts after the first turn whose request is at or above backgroundAt × context window (clamped to 0.3–0.95). One job per session.

  • If Pi compacts while the summary is still streaming, it waits only for the rest.

  • The summary is not used if summary + kept tail would exceed 60 % of the window (Pi would compact again right away); a fresh one is started after the next turn, or the normal path runs.

  • Plain /compact uses a ready summary too; /compact <instructions> always takes the normal path.

  • In this mode the summary is stored without the file-list suffix the normal path appends: the file list is only known at compaction time, and appending it would change the pre-warmed summary message.

  • Measured with scripts/background-smoke.mjs on vLLM Qwen3.8-27B (2× RTX 3090, TP=2, thinking off, 64k window, Pi's threshold auto-compaction at ~49k tokens), time from compaction start to the first reply after it:

    	compaction	first reply after	total
    background: false	83.5 s	2.7 s	86.2 s
    background: true, no pre-warm (0.5.0 pre-release)	0.002 s	24.4 s	24.4 s
    background: true	3.0 s (finishing the last pre-warm)	4.2 s, 88 % of the prompt from cache	7.2 s

    Planted facts survived in every run.

What you see

Compaction: reusing cached prefix (215,275 tokens)
Compaction done in 86s (4461 tokens out, 214,900 prompt tokens served from prefix cache)
Context re-warmed in Ns; next turn starts from cache

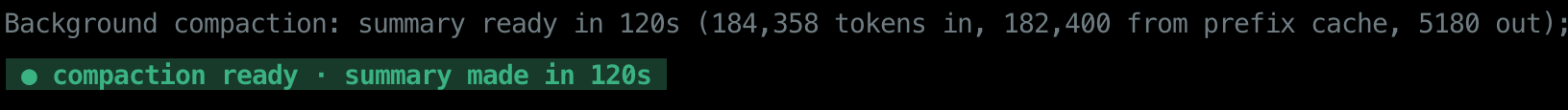

With background on, in a real session (Qwen3.8-27B, thinking xhigh, 262k window):

The full sequence (from a background-smoke.mjs run, 64k window):

Background compaction: started at 25,238 / 64,000 tokens (39%); you can keep working
Background compaction: summary ready in 14s (29,614 tokens in, 27,200 from prefix cache, 870 out); ready for the next compaction
Compaction: used background summary (53,156 tokens; kept everything after the summarized request)
Context re-warmed in 27s; next turn starts from cache

Footer pill (statusBar), colors from the active Pi theme:

State	Pill
summary request waiting on prefill	⠹ prefilling 215k from cache · 12s
summary streaming (output count is chars / 4)	⠼ summarizing 215k · ~1.2k out · 41s
background summary running (grey)	⠏ pre-summarizing in background · ~3.6k out · 90s
background summary ready (stays until used)	● compaction ready · summary made in 120s
warm-up	⠋ warming next turn · 3s
done (green, clears after 8 s)	✓ compacted in 0.1s · context pre-warmed / ✓ compacted · warm in 3s
fallback (amber)	⚠ prefix-cache skipped: <reason>

"statusBar": false turns it off. Print mode never shows it; RPC clients receive setStatus UI requests.

The cache count comes from the server's usage report: DeepSeek, llama.cpp and oMLX include it; vLLM only when started with --enable-prompt-tokens-details (the compaction still hits the cache without it, the number is just omitted). On vLLM's Anthropic endpoint (/v1/messages) the count is gated on the same flag too: vLLM's adapter only emits cache_read_input_tokens/cache_creation_input_tokens when usage.prompt_tokens_details is present (vllm/entrypoints/anthropic/serving.py), and that object is built only with the flag — so behind a LiteLLM-style proxy on the anthropic wire the count is invisible unless the flag is set. If the endpoint rejects the request you get one line and Pi's default runs, e.g. Prefix-cache compaction skipped (HTTP 401 ...); using Pi default. A missing credential shows up as auth: No API key found for "<provider>" instead of an HTTP error.

Limits

• Anthropic Messages and OpenAI Chat Completions only; openai-responses and other wire formats fall through to Pi's default. Pi's built-in hosted OpenAI provider uses openai-responses, so hosted GPT models are not covered. The OpenAI Chat Completions path is new in 0.3.0 (see Verified against); any malformed request falls back to Pi's default rather than failing the compaction.
• With persist off the capture lives in memory only: the first compaction after starting, resuming or /reload, before any turn is sent, uses Pi's default. With persist on (default) this applies only to a brand-new session.
• Switching the model mid-session invalidates the capture (different model means a different cache): the next compaction uses Pi's default until the new model sends a real turn.
• After falling back to Pi's default compaction, the capture is marked stale until a real turn re-anchors it, so two consecutive compactions without a turn in between use the default both times. The warm-up still runs after such a default compaction.
• The summary covers the whole captured request, including the recent messages Pi keeps verbatim, so it can repeat a little of that tail.
• The warm-up uses Pi's convertToLlm, not other extensions' context transforms; if you use such extensions the warm-up may only partly hit.
• A user message containing the literal <conversation> tag is not captured (same text as Pi's own summarizer requests); the previous turn stays the anchor instead.
• Background mode does not always remove the wait. Pi still waits when it compacts before the background summary is finished (it waits for the rest; at high thinking levels a summary takes minutes) or while the last pre-warm is running (seconds; capped at 90 s). It falls back to the normal path when the summary failed, when summary + kept tail would exceed 60 % of the window, and for /compact <instructions>. If the context grows from 70 % to Pi's threshold faster than the summary is written (e.g. several large file reads in a row), lower backgroundAt.
• Background mode replays the session's own thinking level (changing it would change the prefix). At high thinking levels the background summary takes minutes, not seconds (120 s at 184k tokens, xhigh, Qwen3.8-27B); if the context reaches Pi's threshold first, Pi waits for the remainder.
• Background mode runs the summary alongside your live turns on the same server. On a single local GPU pair those turns decode somewhat slower until it finishes; their prefix-cache hit is unaffected (98–99 % measured during a background summary).
• The warm-up goes through ctx.modelRegistry.streamSimple (Pi ≥ 0.86) or pi-ai's completeSimple with auth from getApiKeyAndHeaders (Pi 0.85), so the credential is resolved at request time either way. A failed warm-up is silent in the UI (the next turn simply prefills normally); /prefix-compaction shows the last warm-up error, and PI_PREFIX_CACHE_DEBUG=1 prints it to stderr.

Development

npm test                     # unit tests (node --test, no Pi needed)
node scripts/rpc-smoke.mjs --provider <id> --model <id> [--thinking xhigh] [--no-warmup] [--rows 700] [--cycles 1]
node scripts/resume-smoke.mjs --provider <id> --model <id> [--persist false] [--base-url URL --api-key KEY --model-id NAME]
node scripts/experiment.mjs experiments/incremental.json [--repeats N] [--dry-run]
node scripts/background-smoke.mjs --provider <id> --model <id> [--window 64000] [--rows 500] [--no-background]
node scripts/stale-ctx-smoke.mjs --provider <id> --model <id>

The smoke test runs Pi in RPC mode in an isolated agent directory against your real server, compacts a ~45k-token session (--rows scales it; 300 is comfortable for a laptop llama.cpp) and times the first turn after; --cycles N repeats compact-then-continue N times in one session and checks two planted facts after each. experiment.mjs runs config-driven live A/B experiments (see experiments/README.md): each arm is any overlay of this extension's config, every arm runs the same scripted session (plant a fact per cycle, push it out of the verbatim tail, compact, finally recall every fact), arms interleave over repeats, and the exit code is gated on the checks you choose — every compaction used the extension, incremental wiring, no lost facts, and a minimum speed gain of candidate over baseline. resume-smoke.mjs checks persist: one process runs a short session and quits, a second resumes it with --continue and compacts before any turn; it passes only if that compaction went through the extension (or, with --persist false, only if it fell back). --base-url points it straight at one inference server so it does not take a slot on a shared proxy. background-smoke.mjs shrinks the model's context window in a temp models.json so Pi's own threshold auto-compaction fires after a few file reads, then reports how long Pi was blocked and whether planted facts survived; --no-background runs the same scenario as the baseline. stale-ctx-smoke.mjs replaces the session while background work is still running and checks Pi survives (regression test for a crash after /reload). PI_BIN selects another Pi binary, PI_CODING_AGENT_DIR another models.json.

License

MIT
