pi-files-widget-overlay

An in-terminal floating file browser, file viewer, and Git diff overlay for Pi.

Origin

This is an overlay-focused fork of tmustier/pi-extensions — files-widget.

Screenshots

Install

Install from npm with Pi's package manager:

pi install npm:pi-files-widget-overlay

For local development, add the repository directory to Pi's global settings file ($PI_CODING_AGENT_DIR/settings.json, defaulting to ~/.pi/agent/settings.json):

{
  "extensions": [
    "~/pi-files-widget-overlay"
  ]
}

Dependencies

• Pi >=0.84.4
• git for Git status and diff mode when available

The extension has no bat, glow, or delta runtime dependency. It uses Pi's theme-aware syntax highlighter and Markdown renderer.

Commands

Command	Description
/readfiles	Open the browser at the current directory.
/readfiles <path...>	Open the browser with one or more absolute, relative, or ~-prefixed directories. Quote paths containing spaces.
/readfiles <file-path>[:line] or /readfiles <file-path>:<start>-<end>	Open one file directly in the viewer at a line, or show both range endpoints when they fit; q returns to its parent browser with the file selected. Only one file is accepted.

For development:

npm install
npm test
npm run typecheck

Browser keybindings

Key	Action
j / k or ↑ / ↓	Move the selection.
Enter	Open a file or expand/collapse a directory.
h / l or ← / →	Collapse/expand a directory; l / → opens a selected file.
PgUp / PgDn	Page through the tree in the single-column layout.
p	Toggle the tree/preview split on wide terminals.
Tab / Shift-Tab	Switch to the next / previous command-provided root when multiple distinct roots are provided.
y	Copy the selected file or directory's absolute path.
*	Pin/unpin the selected directory (or selected file's parent) for default /readfiles roots.
c	Toggle changed-only view within the current search results.
C	Toggle expanded changed view within the current search results.
[ / ]	Previous/next changed file; when searching, stay within the current results.
/	Search file names.
@	Search literal file content asynchronously.
u	Re-root at the parent directory.
.	Return to the command's starting directory.
+ / = and - / _	Increase/decrease panel height.
?	Show/hide the complete browser help.
q / Esc	Close the overlay.

While either search is active, type to search and use ↑ / ↓ to move. Enter keeps the query and returns to the normal browser help; its header displays the query as /foo (Esc clears) or @foo (Esc clears). Esc cancels the active search; Backspace deletes input and cancels when the query is empty. After confirming a browser query, Esc clears the retained query before a second Esc closes the overlay. Press the active search key again to clear the query.

Viewer keybindings

Key	Action
j / k or ↑ / ↓	Move the line cursor.
PgUp / PgDn or Ctrl-U / Ctrl-D	Scroll by half a page.
g / G	Jump to the top/bottom; <count>G jumps to a logical line.
d	Toggle Git diff for a changed tracked file.
m / r	Toggle rendered/raw Markdown in the normal, non-diff view.
w	Toggle word wrap.
y	Copy the current file's absolute path.
/	Enter search mode.
n / N	Next/previous search match.
v	Enter or leave line-selection mode.
c	Comment on selected lines.
C	Comment on the whole file while selecting.
[ / ]	Previous/next changed file.
+ / = and - / _	Increase/decrease panel height.
?	Show/hide the complete viewer help.
q, Esc, or ←	Return to the browser when not searching, selecting, or editing a comment.

In search mode, type to search and press Enter to keep the query; its header displays /foo (Esc clears) and the match position (including [0/0] when no line matches). Esc or ← exits active search; Backspace deletes input and exits only when the query is empty; pressing / again clears the query. With a kept query, Esc or ← clears that query; a subsequent Esc or ← returns to the browser.

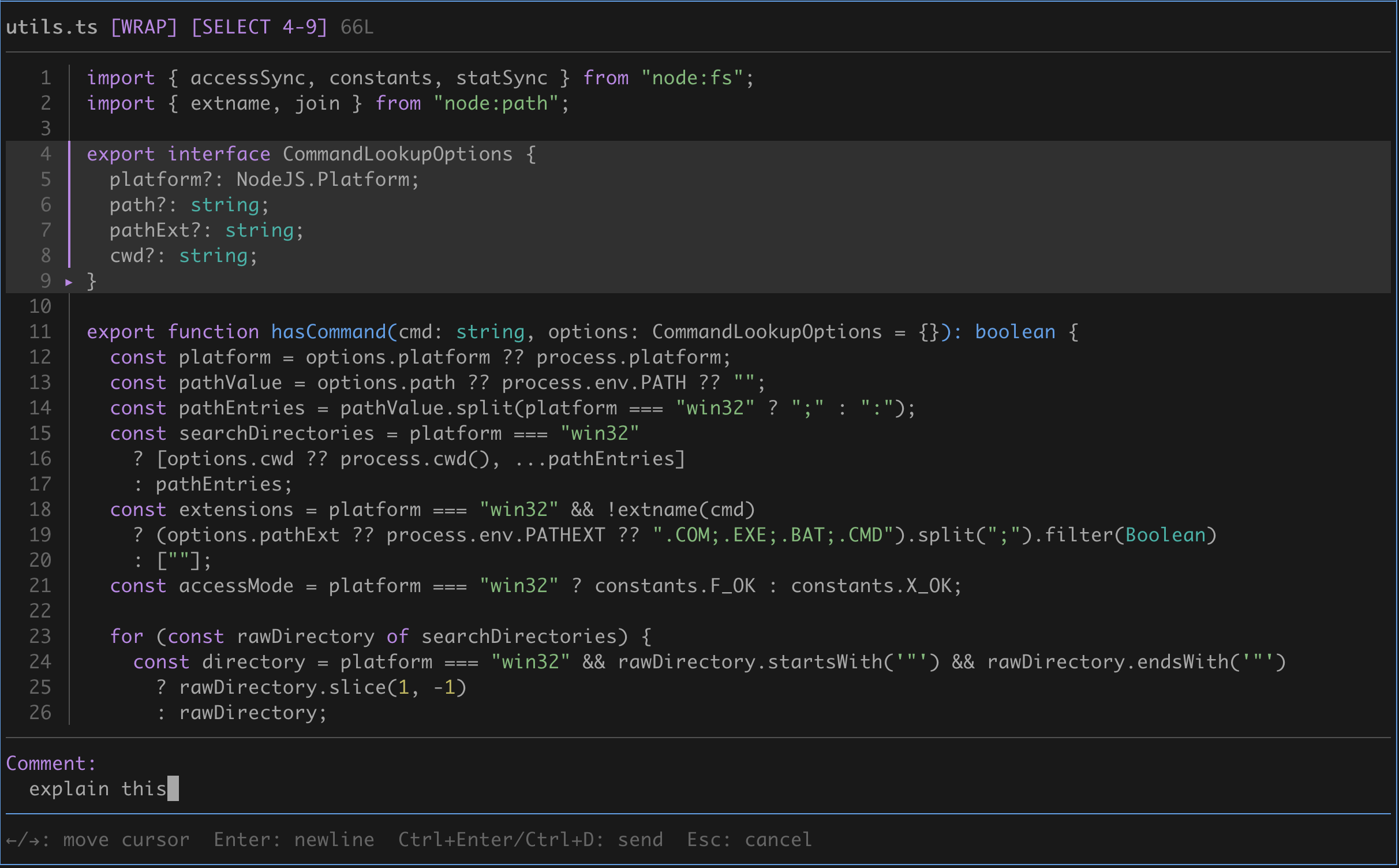

In selection mode, j / k or ↑ / ↓, PgUp / PgDn, Ctrl-U / Ctrl-D, and g / G extend or reset the selection; Esc, ←, or v cancels it. c opens the line-comment editor and C opens the file-comment editor. In the comment editor, Enter or Shift+Enter adds a line, ← / → moves the cursor, Backspace deletes, Ctrl+Enter, Ctrl+D, or supported Alt+Enter sends the comment, and Esc cancels.

Configuration

Browse-position restoration is disabled by default. To restore the last selected file or browser directory for each single-root /readfiles command root in the same Pi session, add this namespace to Pi's global settings file ($PI_CODING_AGENT_DIR/settings.json, defaulting to ~/.pi/agent/settings.json):

{
  "piFilesWidgetOverlay": {
    "restoreBrowsePosition": true
  }
}

The extension reads restoreBrowsePosition but never writes it. Pinning or unpinning with * updates only piFilesWidgetOverlay.pinnedRoots, preserving other settings fields. Each single-root command root keeps an independent memory-only browsing position: /readfiles and equivalent resolved paths restore their own last position. An explicit single /readfiles <path> starts at that path. Accessible pinned roots are appended to every command's root list after explicit paths (with normalized-path de-duplication), while multi-root state is never saved on close. Equivalent path spellings share a normalized absolute-path record.

Multi-root commands

Pass roots directly to the command, separated by whitespace; quote paths containing spaces:

/readfiles ./src ./test
/readfiles "./my src" "./my test"

The first path must be accessible and is the initial root. Press Tab or Shift-Tab to switch roots. Selecting an inaccessible secondary path reports it as unavailable. Multi-root root selection and locations exist only while the Overlay is open; a valid existing browse record for the first root may initialize that root, but multi-root state is never saved on close.

Notes and edge cases

• The overlay is centered at 95% of terminal width with a one-cell margin. Its maximum height is 95% of the terminal; panels start at 85% and + / - adjust within that limit.

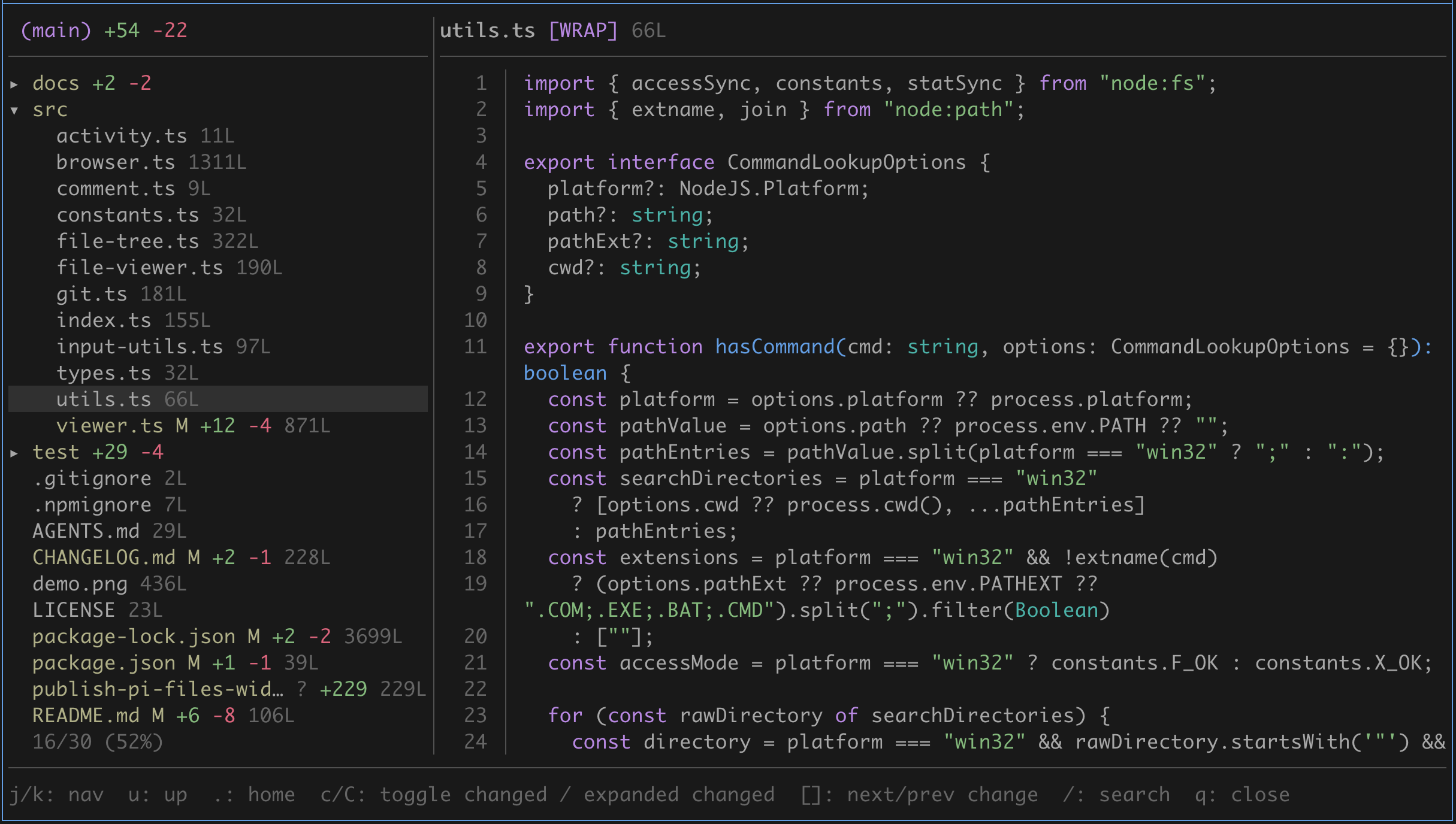

• Wide terminals use a read-only 3:7 tree/preview split. The preview follows the selected item; g / G, <count>G, PgUp / PgDn, Ctrl-U / Ctrl-D, and w control it without enabling edits. For nested files, preview and full-viewer titles append the current-root-relative path in parentheses after the filename, distinguishing same-named search results. When space is tight, the title shows the directory with /… to indicate the omitted filename.
• Hidden project files such as .pi/ and .github/ remain visible. .git/ and common dependency/build caches remain hidden.
• Directory symlinks show ↗ and can be expanded. Untracked files show [UNTRACKED] and open in normal view.
• A single file argument opens the file viewer immediately and keeps that file selected in its parent directory for when you return with q, even when Git ignores it or its name is normally hidden by the browser. This exception exposes only the requested file, not other ignored files; Git-ignored files use normal content rather than diff mode and do not count as changed. For example, /readfiles src/index.ts:126-140 positions line 126 near the top so lines 126 and 140 are both visible when the viewport can fit them; for longer ranges it shows as much as possible starting at 126. The range is not selected or highlighted. This works on narrow terminals too; out-of-range lines clamp to the last line. A requested source line uses raw Markdown and normal (non-diff) file content so line numbers stay source-aligned. After returning to the browser, Pin and other directory actions remain available; re-rooting clears a pending line jump.
• Searching or selecting rendered Markdown switches it to raw source so matches, line numbers, and comments stay aligned. On terminal-width changes, rendered Markdown keeps the current paragraph when it can identify it; otherwise it returns to the top.
• Comments for files outside the current project use absolute paths; comments for project files use project-relative paths.
• Image, binary, and terminal-control-character files show a safe metadata placeholder instead of rendering their bytes. File names, paths, and error messages are sanitized before terminal rendering.
• Line counts load asynchronously. The Files title reports scan activity and short-lived scan errors. Large non-Git folders can load progressively and show [partial] in safe mode.
• Git status refreshes every 3 seconds while the overlay is open. Folder line counts appear only while the folder is collapsed.

License

MIT
