omp-relay

omp-relay is an authenticated, streaming forward relay for OMP (Oh My Pi). It routes provider traffic through a machine in another network without changing the provider destination selected by OMP.

Its primary use case is reaching AI providers that restrict clients by GeoIP, region, ASN, or network policy. It also works as a private reroute when one network path is unreliable.

How it works

flowchart LR
    A[OMP provider request] -->|PI_PROXY| B[Authenticated forward proxy]
    B -->|HTTP or CONNECT| C[omp-relayd]
    C -->|exact destination selected by OMP| D[AI provider]
    C --> E[(paired-client registry)]
    C -.->|latency, streams, uptime| F[OMP status widget]

• Exact destinations — model requests, provider discovery, authentication, and streaming keep the effective URL selected by OMP.
• Standard proxy protocol — absolute-form HTTP requests and HTTPS CONNECT tunnels; no hard-coded model-to-host map.
• Streaming transport — incremental HTTP/SSE responses and WebSocket-compatible tunnelling.
• Authenticated clients — one-time pairing codes, random per-client credentials, server-side token hashing, and revocation.
• Live OMP status — connected, degraded, unreachable, and offline states with latency, stream count, and relay uptime.
• Continuous health refresh — the widget probes the relay periodically instead of showing stale state.

Install

Install the OMP extension from npm:

omp plugin install omp-relay

npm installs do not update themselves — rerun omp plugin install omp-relay to pick up a newer release.

Relay server binary

Download the archive for your Linux architecture from GitHub Releases:

Architecture	Release asset
Linux x86-64	omp-relayd-linux-x86_64.tar.gz
Linux ARM64	omp-relayd-linux-aarch64.tar.gz

Each archive has a matching .sha256 checksum. The published executables are statically linked Linux binaries, so they do not depend on the build runner's glibc version.

Example installation:

tar -xzf omp-relayd-linux-x86_64.tar.gz
install -Dm755 omp-relayd ~/.local/bin/omp-relayd

Checkout / development

git clone https://github.com/DarkPhilosophy/omp-relay.git
cd omp-relay
bun install
omp plugin link .

omp plugin link . registers the checkout and loads src/index.ts; no extension source is copied into OMP.

Run the relay server

Keep the binary in a stable location. On Linux with systemd, the relay can install and manage its own user service:

install -Dm755 omp-relayd ~/.local/bin/omp-relayd

~/.local/bin/omp-relayd \
  --registry ~/.local/state/omp-relay/registry.json \
  service install --bind 10.90.0.2:43118

~/.local/bin/omp-relayd service status

The install command creates a hardened systemd user unit, reloads systemd, and enables the relay immediately. Use service install --no-enable to write the unit without starting it, or remove it later with:

~/.local/bin/omp-relayd service uninstall

On systems without systemd, run the process through your preferred supervisor:

omp-relayd \
  --registry ~/.local/state/omp-relay/registry.json \
  serve --bind 10.90.0.2:43118

Bind to a private WireGuard, NetBird, Tailscale, LAN, or similarly protected interface. Do not expose the relay directly to the public internet without an additional network-security layer.

Pair and connect

Generate a single-use pairing code on the relay host:

omp-relayd --registry ~/.local/state/omp-relay/registry.json pair

Then pair and activate it inside OMP:

/relay pair http://10.90.0.2:43118 CODE atv
/relay start atv
/relay status

Commands

Type /relay in OMP to open argument completion.

Command	Purpose
/relay pair <url> <code> [name]	Pair this OMP client with a relay
/relay list	List paired relay servers
/relay start [name]	Route OMP provider traffic through the relay
/relay stop	Return to direct provider connections
/relay status [name]	Probe relay health and display latency
/relay debug [on|off]	Toggle server-side routing diagnostics

The extension stores pairing state under ~/.omp/agent/relay.json with restrictive permissions. It never writes provider credentials into the relay registry.

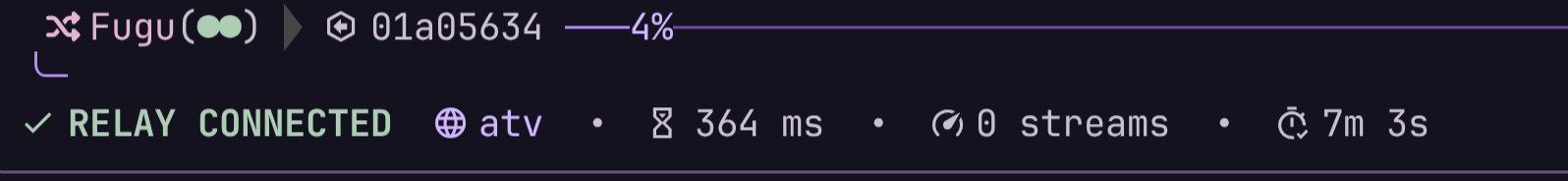

Status widget

The belowEditor widget presents the connection as a compact OMP-native status line:

󰄬 RELAY CONNECTED  󰖟 atv  •  󰔟 364 ms  •  󰓅 0 streams  •  󱫑 7m 3s

• Green — relay reachable and authenticated.
• Yellow — reachable but degraded or reporting a problem.
• Red — configured relay is unreachable.
• Offline — rerouting is disabled.

A Nerd Font provides the full icon presentation; the accompanying text remains readable without those glyphs.

Server administration

# List paired clients
omp-relayd --registry ~/.local/state/omp-relay/registry.json list

# Revoke one client immediately
omp-relayd --registry ~/.local/state/omp-relay/registry.json revoke UUID

# Run deterministic diagnostics without listening or touching the real registry
omp-relayd self-test

Security model

1. Private-network first. The relay is a transport boundary, not a replacement for WireGuard, a firewall, or equivalent access control.
2. Short-lived pairing. Pairing codes expire after ten minutes, are case-insensitive, and can be consumed only once.
3. Hashed credentials. Client tokens are random and stored as hashes in the server registry.
4. Authenticated proxying. Every absolute-form request and CONNECT tunnel requires proxy authentication.
5. Immediate revocation. Revoking a client removes its authorization from the active registry.
6. Safe diagnostics. Debug logs contain routing metadata, not authorization headers or request bodies.
7. Rate-limited pairing. Failed pairing attempts are bounded by client IP.

Release model

A stable version tag such as v0.1.1 runs the release workflow:

1. scans locked npm dependencies for known vulnerabilities;
2. builds and self-tests static x86-64 and ARM64 Linux relay binaries;
3. validates the tag, npm version, and Cargo version;
4. runs formatting, type checks, Bun tests, Rust tests, Clippy, leak scan, package checks, and relay self-test;
5. installs the packed npm extension with OMP and runs omp plugin doctor;
6. publishes omp-relay to npm with provenance;
7. creates a GitHub Release containing both binary archives and their SHA-256 checksums.

CI artifacts are temporary build evidence only. User-facing binaries are attached directly to the GitHub Release.

Repository layout

src/index.ts          OMP extension: commands, proxy environment, health widget
relayd/src/forward.rs HTTP forward proxy and CONNECT tunnelling
relayd/src/registry.rs Pairing and client registry
tests/                Bun extension tests
.scripts/             Leak scan, package checks, and test-mode launcher
.github/workflows/    CI and stable-release automation

Development

bun install
bun run verify       # full TypeScript + Rust verification and release build
bun run format       # apply Biome formatting
bun run test         # extension tests
bun run test:rust    # relay server tests
bun run test:mode    # deterministic relay self-test
bun run package:check

test:mode does not open a port, contact a provider, or modify the production registry.

Support

If this helps your OMP workflow, sponsor continued development:

• GitHub Sponsors: https://github.com/sponsors/DarkPhilosophy

License

GPL-3.0-or-later.
