mockpit

A design-decision loop for terminal coding agents.

Your agent publishes a mock (a page or a component) in each of its UI states and in a few parallel looks. It shows up live in your browser with the agent's questions beside it: pick a look from pictures, tune the knobs it exposed, leave comments on the parts it marked, then press Send, at your own pace. Nothing the agent calls waits for you: it gets the whole batch once and revises.

Fork of sideshow

mockpit is a fork of sideshow by Ben Vinegar, sponsored by Modem. The renderer, sandboxing, MCP/CLI/HTTP tiers and Cloudflare deploy all come from that work. Thank you.

Upstream is a live visual surface where agents post renders and you comment. mockpit turns that into a design-decision loop:

	sideshow	mockpit
Structure	A stream of posts per session	project › mock › state › variant › version: a repo, a page or component by slug, its UI states, parallel looks, history
Questions	Free-text comments	The agent asks; you answer in place, picking from pictures of each option
Tuning	—	Knobs the agent declares (sliders, colours, springs…) on tunekit, live on the stage
Comments	Text on a post	Anchored on a part the agent marked with data-part, in a given state
Feedback	Each comment reaches the agent as it's written	Picks, tuned values, mix and comments stay drafts until you Send, then go out as one reply
Design system	Built-in viewer themes	mockpit init detects the repo's tokens, fonts and kit so the agent's markup matches your codebase
Agent verbs	Post-level: publish, update, wait, comment	Mock-level, never blocking: publish, ask, read, feedback, say, export, upload, guide, run

The loop

1. Publish. The agent publishes each state of the mock ("Writing", "Lab open") in one or more variants ("quiet", "dark"). One stage shows the mock; the strip under it switches states.
2. Ask. The agent asks what it can't decide alone: which look, where a panel goes, which of two layouts. The question lives in the mock, not in chat; the agent tells you where to look and ends its turn. Options bound to a variant or to knob values render as pictures; hovering one previews it on the stage, clicking picks it. After the look, Mix offers to borrow a part from another look. Variants the agent forgot to ask about get a built-in Which one?.
3. Tune. Parts the agent marked are selectable on the stage. Tune lists them with the knobs it declared for each, plus a comment field. Presets save a set of tuned values in your browser.
4. Send. Everything above is a draft (it survives a reload) until one Send. A mock with a single variant and no questions gets Accept / Revise / Drop instead. The Send lands in the Thread as Not seen yet, then Delivered once the agent has it. If it isn't picked up, tell your agent you've answered.
5. Revise. The agent gets one reply (answers, tuned values, mix, comments) on its next write, its next feedback call, or from mockpit watch under a background monitor. It publishes the next version; the frame header's v3 ▾ lists the history, and an older version opens under a banner with "restore as vN". Looks that lost are archived, not deleted.

Home lists the project's mocks with a thumbnail, their states and how many questions are open, with "Answer next ›" to jump to the first one. Dark and light themes, toggled from the top bar. On a phone or tablet the panel becomes a bottom sheet, the stage scrolls under your finger and renders the design at a chosen width (Phone 390, Tablet 744, Desktop 820, Wide 1280), and Inspect opens the stage full screen to pan and pinch-zoom it.

Quick start

Requires Node 22.18 or newer.

git clone https://github.com/fabiogaliano/mockpit && cd mockpit
npm install
npm start                      # viewer on http://localhost:8228
npm link                       # puts the `mockpit` CLI on your PATH

Point your agent at it by pasting the setup block into its instructions:

curl -s http://localhost:8228/setup >> AGENTS.md

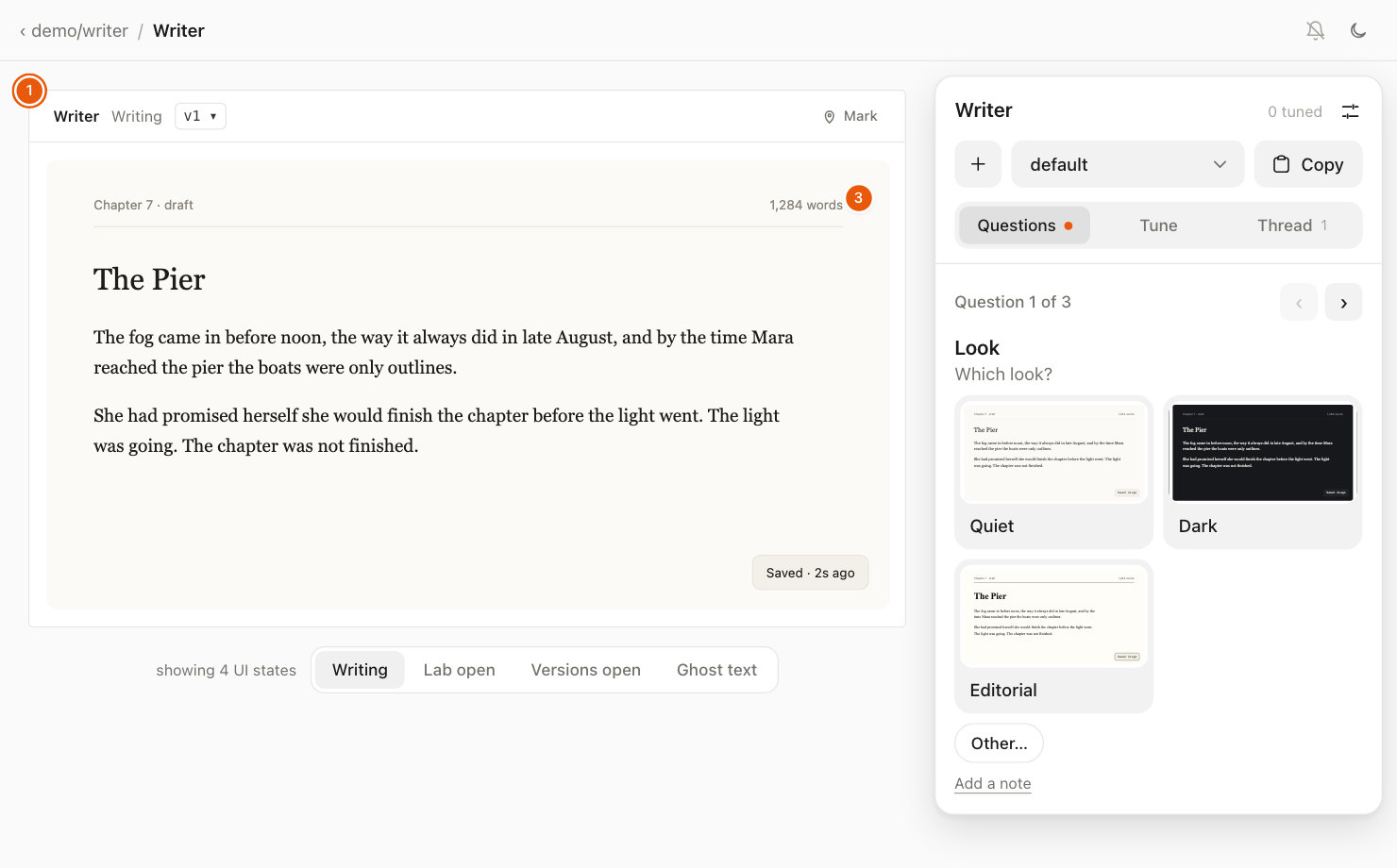

Then run mockpit init once per repo and ask the agent to "mock this up on mockpit". No agent handy? mockpit demo seeds the Writer: one mock in four states and three looks, with questions, knobs and marked parts.

MCP, the Pi extension and the Claude Code plugin are covered in docs/connecting-agents.md.

What a mock can show

A version is an ordered list of surfaces, and one version can carry several. Html is what design mocks use and the only kind with parts and knobs; the others render the same way on the stage.

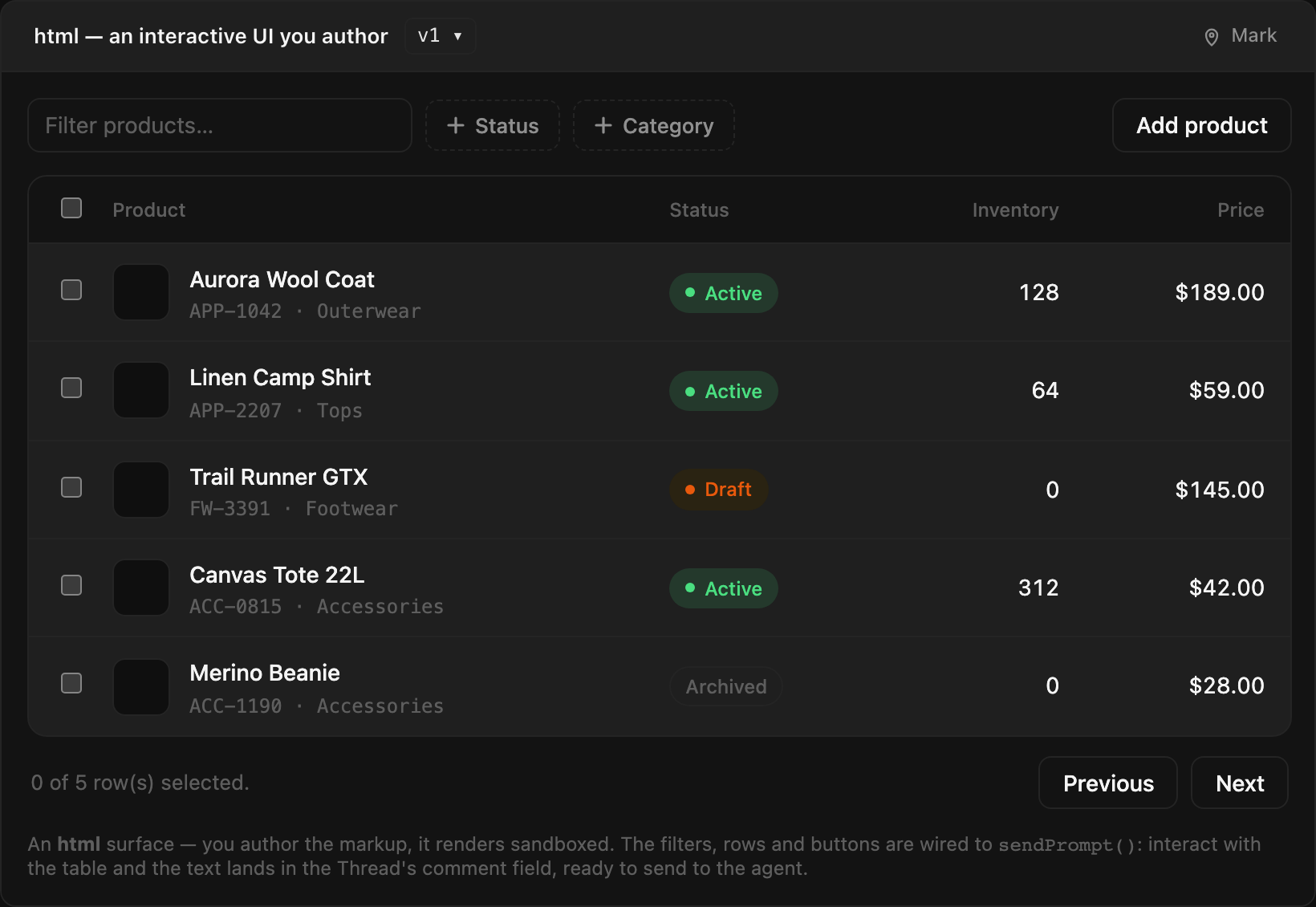

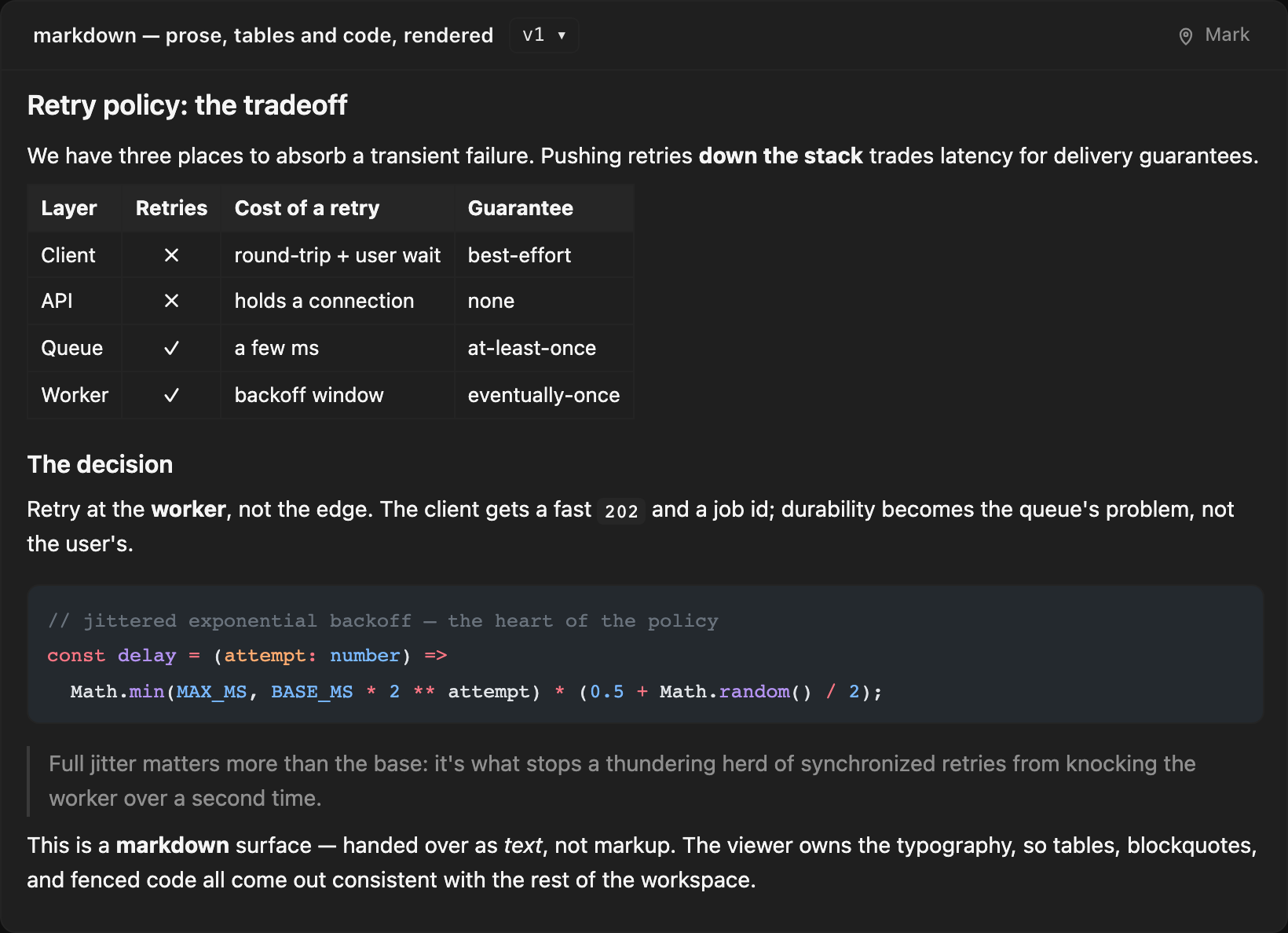

html: markup the agent authors, rendered in a sandbox and themed by your design system.	markdown: prose, tables and fenced code.

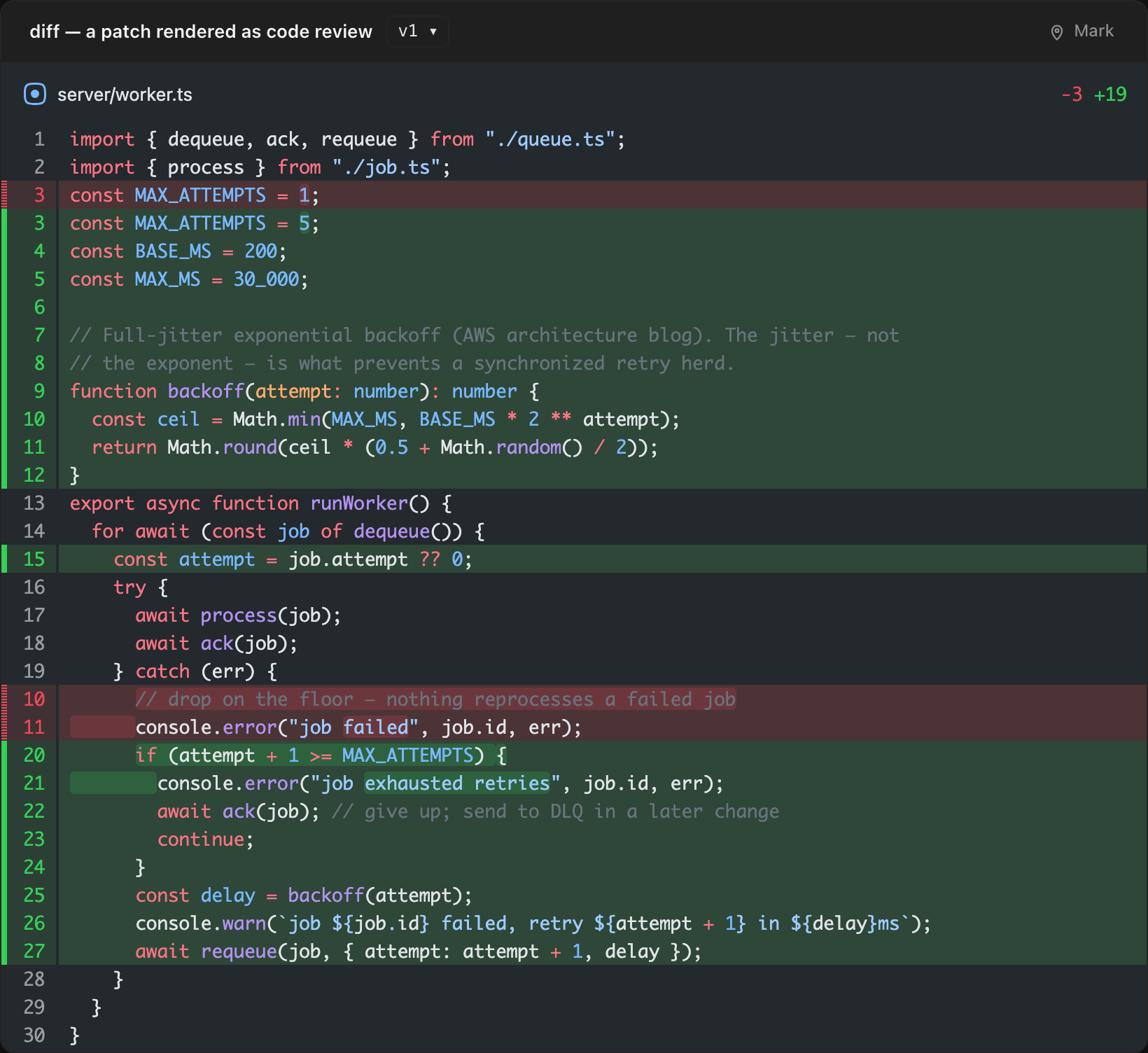

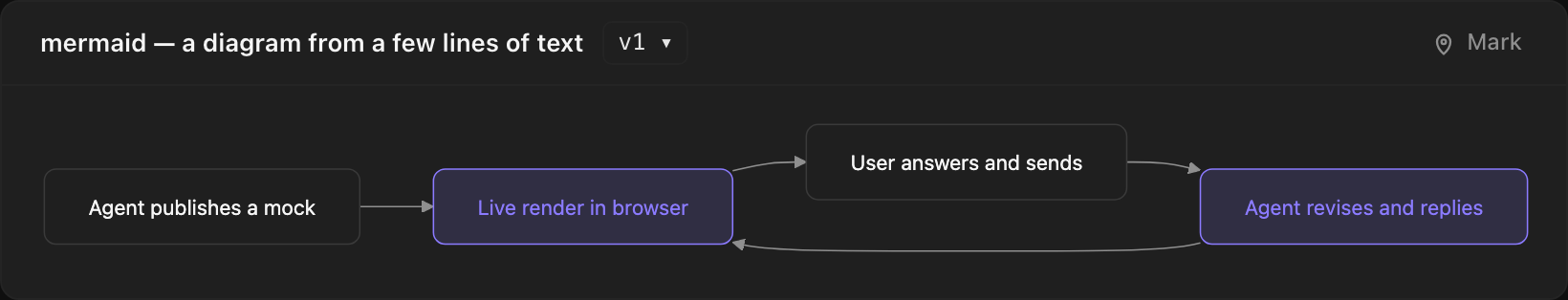

diff: a patch as a syntax-highlighted code review (unified or split).	mermaid: diagram source rendered to SVG in the viewer palette.

There are also terminal (ANSI output), image (uploaded assets), json (collapsible tree) and code (shiki-highlighted source with line numbers).

Agent verbs

Nine verbs, the same on every tier with the same fields: a zero-dependency CLI for agents with only a shell, MCP over stdio or streamable HTTP at /mcp, and plain HTTP. None of them waits for the user.

CLI	MCP	HTTP
mockpit publish	publish	POST /api/mocks
mockpit ask	ask	POST /api/mocks/:id/asks
mockpit read [slug]	read	GET /api/mocks, GET /api/mocks/:id
mockpit feedback	feedback	GET /api/feedback?session=…
mockpit say	say	POST /api/mocks/:id/say
mockpit export	export	GET /api/mocks/:id/export
mockpit upload	upload	POST /api/assets
mockpit guide	guide	GET /agent-howto
mockpit run	run (?mode=code)	POST /api/run

The CLI adds mockpit init (detect the repo's design system, once per repo) and mockpit watch (one line per Send, for a background monitor).

• publish is the one write. It creates the mock, state or variant, or the next version of an existing one. Send html, the full ordered surfaces list (an entry that is only {id} keeps that surface), or parts to replace just the marked elements.
• feedback returns at once with what the user sent since the agent last heard, plus pending: whether each mock is open in the viewer and how far the user's draft has got (2 of 3 answered). Every write returns feedback too, and each Send is delivered exactly once across all of them.
• Asks are nudged. A publish that leaves several variants with no ask binding them returns a nudge and a ready suggestedAsk.

A typical turn:

mockpit publish --mock writer --state "Writing" --variant quiet --html quiet.html
mockpit publish --mock writer --state "Writing" --variant dark  --html dark.html
mockpit ask     --mock writer "Which look?" --option Quiet=quiet --option Dark=dark
# the agent says where to look and ends its turn; once you've answered:
mockpit feedback

The running server serves the brief at /agent-howto: one short, project-aware document an agent reads before its first publish. Reference topics (knobs, asks, surfaces, html, reply, http, scripts) are at /agent-howto?topic=<id>; /guide is the html topic. run executes one script against the same verbs on the server, so publishing variants and asking take one call; /mcp?mode=code serves it as the only tool, for connectors without a codemode of their own.

Run it anywhere

It runs locally as a small Node server (SQLite at ~/.mockpit/mockpit.db), or on Cloudflare Workers when your agent and browser are on different machines. See docs/deploying.md.

The server keeps an event log, one JSON line per agent call, viewer write and live-feed connection (ids and shapes, never content), at ~/.mockpit/events.jsonl next to the database. It rolls over at 10 MB. Set MOCKPIT_LOG to another path, or to off to disable it; on Workers it goes to Workers Logs. node scripts/inspect.ts in a checkout reads it alongside the database and Claude Code transcripts.

The server app is importable from mockpit/server (createApp, SqlStore, createSqliteStorage). The embeddable viewer engine (mockpit/viewer-embed, mountViewer) is gone: the viewer is self-hosted only.

Migrating from 0.x

• SQLite workspaces migrate in place on first boot. Each item becomes a single-state mock with its variants and version history; comments keep their ids and sequence numbers, so agents' feedback cursors carry over. Comments a user was still drafting become the mock's draft. Deployed Durable Objects migrate the same way.
• The JSON store is gone. If you run with MOCKPIT_STORE=json, start your current version once without it before upgrading: env -u MOCKPIT_STORE mockpit serve (keep MOCKPIT_DATA/MOCKPIT_DB if you set them). That first SQLite boot copies ~/.mockpit/mockpit.json into ~/.mockpit/mockpit.db, as long as the database is still empty; then upgrade. The JSON file is left untouched either way.
• --item is now --mock (mockpit publish --mock <slug> --state <s> --variant <v>), and the MCP tools are named by verb (publish, ask, read, feedback, say, export, upload, guide).
• Removed: the item, post, snippet and session-page routes (/api/projects/:name/items, /api/posts, /api/surfaces, /api/snippets, /session/:id, /p/:id), ?part=, the item/post MCP tools and their deprecated aliases (publish_item, publish_post, publish_surface, …), the CLI's page, list, sessions, update, per-kind shortcuts (markdown, diff, …), test-post and trace* commands, the github/gruvbox/one themes and the embed engine. Agents should re-fetch /agent-howto; refresh pasted setup blocks from /setup.

Development

npm run dev          # server with watch + viewer watch build
npm test             # Node unit/API/store tests + viewer unit tests
npm run test:worker  # local workerd + Durable Object integration
npm run typecheck    # node + workers + viewer
npm run lint         # oxlint
npm run format       # oxfmt
npm run test:e2e     # Playwright, chromium + webkit (bridge, mock screen, decide flow)

The architecture and contributor rules are in AGENTS.md.

License

MIT. The original sideshow copyright is retained.
