Pi AgentShell Extension

A Pi extension for delegating tasks to other coding harnesses, including Pi, through AgentShell.

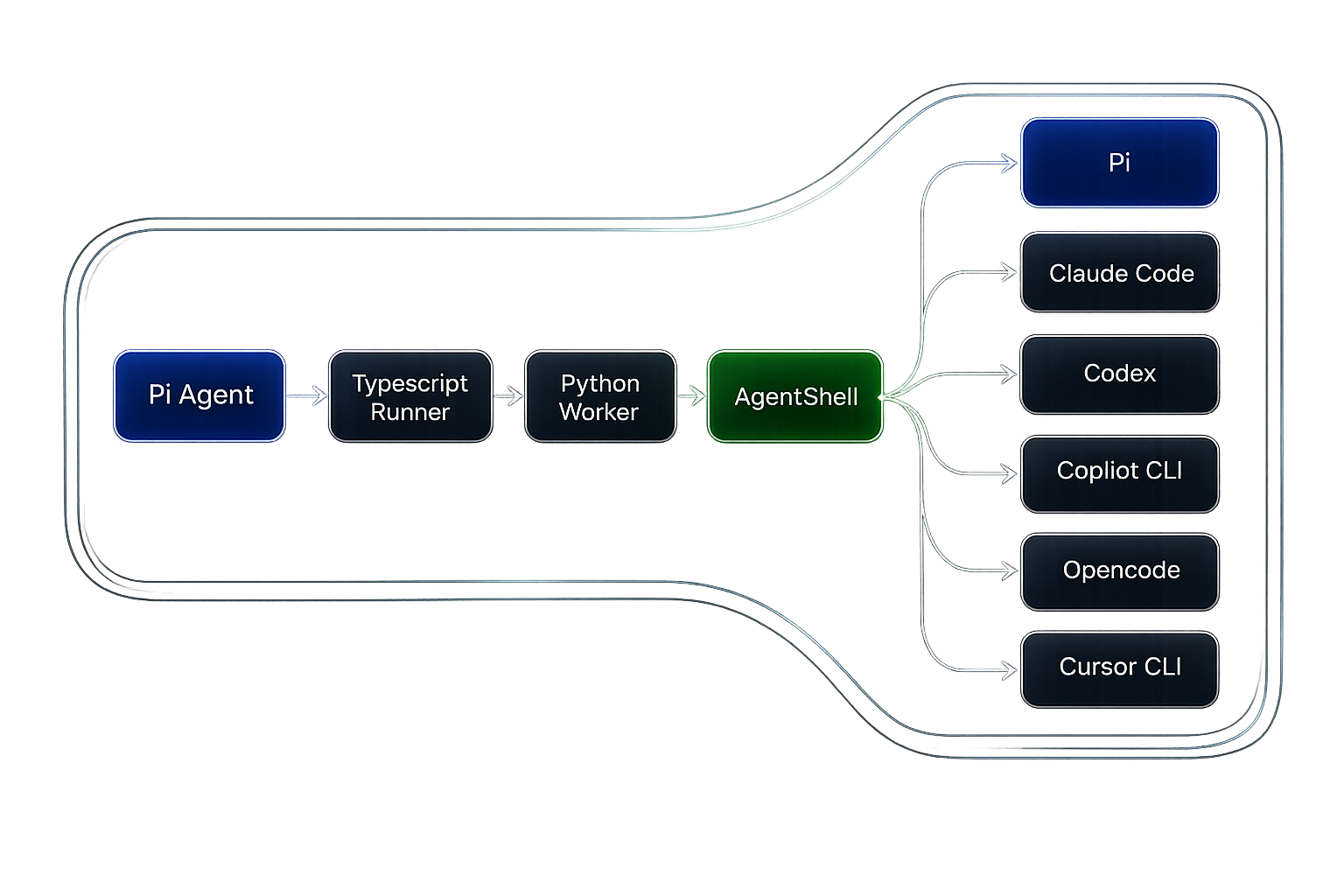

Architecture

The TypeScript runner and Python worker execute delegated tasks through AgentShell. In TUI and RPC sessions, a session-scoped job registry tracks background work and delivers completion as a conversation message. JSON and print sessions wait inside the tool call and return its final result.

Requirements

• Linux, macOS, or WSL2
• Pi
• uv
• Python 3.12 or newer, which uv can provide
• The chosen coding-agent CLI installed and authenticated, such as Codex, Claude Code, or Grok

Installation

pi install npm:@scottrbk/pi-agentshell-extension

To install the latest source from GitHub instead:

pi install git:github.com/ScottRBK/pi-agentshell-extension

Getting Started

The first time Pi starts with the extension installed, it will:

• Check whether uv is available
• Ask for permission to run uv sync --locked --no-build, which installs the AgentShell wheel
• Register the tool immediately after setup

Usage

Once in a Pi session, you can ask it to delegate a task to another coding agent.

For example:

Ask Codex to review this project and identify any bugs.

See AgentShell's list of supported agent types.

The tool accepts the following parameters:

Parameter	Required	Description
agent_type	Conditional	Harness, e.g. pi; optional for named/known resumed calls.
roster_entry	No	Child entry name from subagent_roster; applies its launch settings.
task_name	Yes	Display name, 1–40 characters.
prompt	Yes	Task given to the subagent.
cwd	No	Working directory; defaults to Pi's current directory.
model	No	Model identifier passed to AgentShell.
effort	No	Reasoning effort; supported values depend on the agent.
resources	No	Local resource selection; see session rosters.
roster_file	No	Pi-only child roster; omitted means ordinary default behavior.
resume_session_id	No	Returned native session ID; omit or use null for a new session.
auto_approve	No	Automatic tool approval; defaults to false.
allowed_tools	No	Tool allow-list; support varies by agent.
disallowed_tools	No	Tool deny-list; support varies by agent.
interactive	No	Native UI in a neighbouring tmux pane; default false.
stay_open	No	Keep an interactive pane after its result; default false.
inactivity_timeout	No	Seconds before inferred completion; default 60.
inactivity_enabled	No	Allow inferred completion without a reliable agent event.

AgentShell warnings are included in the completion message when an agent cannot enforce a control.

Interactive Tmux Panes

Start Pi inside tmux, then ask it to launch a subagent with interactive: true. The native agent UI opens in a pane to the right. Switch to that pane using your normal tmux bindings to watch progress, answer permission prompts, or type steering directly to the agent. Headless delegation remains the default. Requesting interactive mode outside tmux produces an error.

For example:

Ask Codex to review this project in a tmux pane, and keep the pane open when it finishes.

Pi should pass interactive: true and stay_open: true for that request. Normally the pane closes when the result is delivered. With stay_open, Pi receives the first result while the native UI remains available for further conversation while the agent is running, or viewing after it exits. Later turns in that pane do not send additional job results to Pi. Retained panes are closed when their owning Pi session shuts down.

Completion uses a reliable agent event when available. Otherwise, the extension waits for sustained inactivity: 60 seconds by default. Observable activity, including visible steering, resets the timer. Recognised permission and login prompts prevent automatic closure. Inactivity is an estimate: a quiet agent can still be working, and unfamiliar prompts or busy indicators may not be recognised. Increase the timeout for tasks with long quiet periods. Results inferred from inactivity carry a warning.

Structured answer text is returned when available. Otherwise, the result contains a labelled terminal capture, which can include interface text and may omit output that has scrolled away.

Known constraint: interactive Codex uses terminal capture. Its completion notifications can contain a background-generated title instead of the requested answer. As an interim measure, the extension ignores those notifications and returns terminal text after sustained inactivity, using the same configurable 60-second default. New interactive Codex runs do not return a verified session ID for resumption. Monitoring, steering, and stay_open remain available. Headless Codex is unaffected. With inactivity_enabled: false, these runs wait for process exit or cancellation instead of inferred completion. Process exit alone is not treated as a successful answer. Track removal of this workaround in extension issue #6, linked to Codex issue #43384. Structured Codex results will be restored only after a released upstream fix has been validated against background title notifications and normal answers.

Interactive mode keeps native permission prompts enabled. auto_approve: true and disallowed_tools are rejected; allowed_tools is supported only where the interactive agent adapter can enforce it. The AgentShell interactive API is experimental. This extension pins AgentShell 0.5.0; explicit session resources need that version in both launch modes.

Set defaults in ~/.pi/agent/extensions/agentshell.json (or the same path under your custom Pi agent directory). These are the built-in values:

{
  "interactive": {
    "enabled": false,
    "stay_open": false,
    "inactivity_timeout": 60,
    "inactivity_enabled": true
  }
}

Overrides may be partial, and this section can sit alongside the output-limit settings below. Launch arguments override configuration; configuration overrides built-in defaults. Run /reload after changing the file. Setting inactivity_enabled: false disables inferred completion; agents without reliable completion events then remain active until they exit or are cancelled.

Discovering Models

Use subagent_list_models to find the exact model selectors currently advertised for an agent:

subagent_list_models({
  agent_type: "codex",
  cwd: "/path/to/project"
})

cwd is optional and defaults to Pi's current working directory. The tool returns a JSON array; pass a returned string unchanged as subagent's model value. The list is account- and workspace-aware, but it does not prove that a model has credentials, quota, or provider health. An empty array is a valid result. If an existing runtime predates model discovery, the normal subagent tools remain available and Pi explains how to update the runtime.

Asynchronous Jobs

In TUI and RPC sessions, subagent returns immediately with a session-scoped Job ID. The parent agent and user can continue their conversation while the delegated agent runs in the background.

In JSON and print sessions, subagent waits for the delegated task to finish and returns its result or error directly, including the real session ID when available. It creates no background Job ID and sends no follow-up message. Cancelling the tool call cancels its worker. This lets a headless Pi child finish its own delegated tasks before its session exits.

When the job finishes, its response is delivered to the parent as a follow-up message. If the parent is idle, this starts a turn immediately. If the parent is already working, Pi queues the completion until that work finishes. Do not poll the process or run sleep commands while waiting.

Use these commands to list, inspect, or cancel active jobs. The job list includes each task name, harness, model, effort, status, full Job ID, and latest activity when available:

/agentshell-jobs
/agentshell-inspect <job-id>
/agentshell-cancel <job-id>

Parent agents can inspect a known job without repeatedly polling it:

subagent_status({
  job_id: "job-..."
})

The status result contains a bounded activity tail with tool use, assistant text, warnings, and errors. Once a result is queued for delivery, inspection reports delivering without repeating the final text. Parent agents can cancel a known Job ID through subagent_cancel, so neither inspection nor cancellation requires the user to enter a slash command.

While jobs are active, Pi shows a compact widget above the editor. Each row identifies the task by name, harness, model, effort, and shortened Job ID. When AgentShell reports activity, a second line shows a short Last activity description. Known tool names receive friendly descriptions; shell commands are shown as short, truncated commands. This is the most recent observable event, not a guarantee that the action is still running.

The widget displays the three oldest jobs and summarises any additional jobs as +N more running. Cancelling jobs remain visible until their workers stop. Finished jobs then show delivering… until Pi starts displaying their queued follow-up messages. The widget disappears when no jobs or pending results remain.

A Job ID only identifies the background job; it is not a resumable subagent session ID. The real session ID arrives with a successful completion result. Only active jobs remain in the registry. Completed, failed, and cancelled jobs are removed after their result is delivered because the result is already stored in Pi's conversation history. Live activity is held only in memory and is removed with the job; the extension does not create its own transcript files. Job IDs and active jobs belong to the current Pi session. Session shutdown cancels remaining work.

Silent Mode

Run /agentshell-silent to hide successful subagent responses in Pi. Run it again to restore normal output. Silent calls display ✓ Completed, while warnings and errors remain visible.

The parent agent still receives complete responses and status details. Silent mode hides ordinary subagent_status result text in the terminal, even when expanded; warnings and errors remain visible. Status diagnostics use the same recent 20-entry window and per-entry length limit as the parent's activity text. Tool-call headings, the live activity widget, and /agentshell-inspect are unchanged. The parent agent can still quote a subagent's response in its own messages.

In normal mode, status results show a 10-line preview; expand the tool result to see the rest.

Each job captures the output mode when submitted; each status inspection captures it when called. The command saves your choice for the current Pi session, including across /reload and resumption.

To start new sessions in silent mode, set a global default in ~/.pi/agent/extensions/agentshell.json (alongside any existing settings):

{
  "silent": true
}

Run /reload after changing the file. Saved session choices override the global default, so an existing session may still need /agentshell-silent once. If silent is omitted or false, new sessions start with normal output.

Child Agent Rosters

A roster describes the children this Pi session can launch, not this session's own resources. Define entries in ~/.pi/agent/extensions/agentshell.json:

{
  "roster": {
    "enabled": false,
    "roles": [
      {
        "name": "reviewer",
        "description": "Review code for defects",
        "agent_type": "codex",
        "model": "your-model-selector",
        "effort": "high"
      }
    ]
  }
}

/agentshell-roster toggles this default roster globally, as before. When enabled, subagent_roster lists entries. Select one by name rather than reconstructing its flags:

subagent({
  roster_entry: "reviewer",
  task_name: "Review changes",
  prompt: "Review the current diff for defects."
})

Explicit/ad-hoc calls using agent_type still work. Unknown entries and conflicting manual settings are rejected before starting a job or worker. Every entry requires the five fields above; names are unique and case-sensitive. Optional cwd, resources, and roster_file select that child's directory, resources, and roster for its own children. roster_file is Pi-only; other harnesses can still use supported generic resources in the same roster.

To select a different roster without changing Pi home, login, or personal preferences:

PI_AGENTSHELL_ROSTER_FILE=/workspace/agents/lead/roster.json pi

The selected JSON file contains only the roster key, with the same shape above. It cannot change output limits, interactive defaults, silent mode, or delegation depth. Explicit missing or invalid files fail; they never fall back to the personal roster. Referenced paths and entries are validated even when the roster is disabled. With an override, /agentshell-roster toggles only this process's in-memory roster and writes neither file. Reload restores the file's enabled value. Without an override, existing default behavior remains.

See session rosters for the complete resource shape, path rules, child environment handling, resume guarantees, and external-launcher requirements. Run /reload after editing a roster.

Resuming a Subagent

Every successful completion message ends with the subagent's session ID:

Warning: Interactive subagents are an exception: a session ID is not always guaranteed. The harness may not provide one before inactivity completion. Interactive Codex currently omits notification IDs because they may belong to a background title task instead of your conversation. Without a session ID, Pi cannot offer resumption of that run.

Reviewed the project and found two bugs.

Session ID: 0199f0c1-9a2b-7c3d-8e4f-5a6b7c8d9e0f

For a new task, omit resume_session_id so AgentShell starts a fresh session. If a tool-call interface requires every property, use null instead. To continue the same subagent conversation, pass the exact session ID back as resume_session_id:

Ask Codex to fix the bugs it found, resuming session 0199f0c1-9a2b-7c3d-8e4f-5a6b7c8d9e0f.

The value must come from an earlier successful subagent result. Do not pass new, a background Job ID, or a newly generated UUID.

The harness owns the native conversation. After a successful result, the extension also saves launch defaults in the parent Pi session branch. Startup/reload reads the current branch only. Tree navigation adds visited branch records without forgetting selections known to this running extension. A known selected session needs only task_name, prompt, and resume_session_id; omitted selection settings reuse its recorded role. Roster-defined model/effort, harness, cwd, resources and child roster stay consistent. Neither omitting roster_entry nor leaving its branch can switch a known selected session to an ad-hoc role within that runtime.

Ordinary ad-hoc resumes still accept explicit changes, including model/effort. Ad-hoc resource selections keep resources/cwd consistent without fixing model/effort. Approval/tool controls apply only to the current call: omitted auto_approve is false, and omitted tool lists are not reused. Interactive/inactivity options still default from the saved launch. Native support checks and retained-process safety still apply. Do not resume active sessions: concurrent resumes of the same ID are not prevented. These records provide configuration continuity, not live-job or crash recovery. See the precise limits.

Nested Delegation

By default, your root Pi session can delegate tasks, but its children cannot use this extension. To allow children to delegate too, set max_sub_agent_depth in ~/.pi/agent/extensions/agentshell.json (or under your custom Pi agent directory):

{
  "max_sub_agent_depth": 1
}

Value	Sessions that can use the extension
0 (default)	Root only; its direct children have the extension disabled.
1	Root and its children; grandchildren have the extension disabled.
2	Root, children, and grandchildren; the next generation has it disabled.

Values must be nonnegative safe integers, up to JavaScript's 9007199254740991 limit. At the root, negative numbers, fractions, strings, null, booleans, and other invalid explicit values produce a configuration error. There is no environment-variable override for this setting.

The root captures the limit when the extension loads. Every task launched through this extension advances the depth, regardless of the chosen harness or whether the task uses a tmux pane. Children inherit the root's limit; their local configuration cannot raise, lower, or reset it. Editing the file does not change an existing root's snapshot. Run /reload in the root to use a new value for future launches; existing descendants retain their inherited limit.

At the depth boundary, the whole extension is disabled before other startup work. Legacy children without depth metadata, and children with incomplete or malformed metadata, also have it disabled. The limit controls delegation through this extension only. It does not restrict native agent tools or manual CLI launches, and those launches do not advance the extension's depth counter.

Output Limits

The extension stops a subagent if any of these limits are exceeded:

Setting	Default	What it limits
max_output_bytes	64 KiB	Text returned to Pi and each job's live activity tail.
max_protocol_bytes	2 MiB	Total data sent by the AgentShell worker.
max_message_bytes	256 KiB	One message sent by the AgentShell worker.
max_stderr_bytes	256 KiB	Diagnostic output from the AgentShell worker.

When subagent text output exceeds its limit, the failed completion message includes a UTF-8-safe truncated prefix. A model list that exceeds max_output_bytes is not returned.

To override the defaults, create ~/.pi/agent/extensions/agentshell.json:

{
  "max_output_bytes": 131072,
  "max_protocol_bytes": 4194304,
  "max_message_bytes": 524288,
  "max_stderr_bytes": 524288
}

All agentshell.json keys use snake_case, including nested settings.

Overrides may be partial. Values are positive whole numbers in bytes. max_output_bytes and max_message_bytes cannot exceed max_protocol_bytes. Run /reload after changing the file.

Safety and Limitations

• Child processes run with the user's permissions
• Approval bypass is disabled by default
• Nested extension delegation is disabled by default; max_sub_agent_depth can enable it
• Active jobs are cancelled when their owning Pi session shuts down
• Stopping a parent turn does not stop background jobs; use /agentshell-cancel when needed

Removal

pi remove npm:@scottrbk/pi-agentshell-extension

Development Tests

Install Pi, uv, and tmux, then run:

uv sync --project python --locked --no-build
env -u PI_AGENT_SHELL_CHILD -u PI_AGENT_SHELL_DEPTH -u PI_AGENT_SHELL_MAX_DEPTH \
  -u PI_AGENTSHELL_ROSTER_FILE npm test
npm run test:python

Interactive integration tests use dedicated tmux sockets and deterministic CLI fixtures. They exercise real pane input, result delivery, and cleanup without making model requests. Never run test cleanup against your normal tmux server.

License

MIT
