Readme

Graphite UI

A dark look for the Pi terminal: the Graphite theme, a compact header, run timers, and a two-line footer with context, cost and Git status.

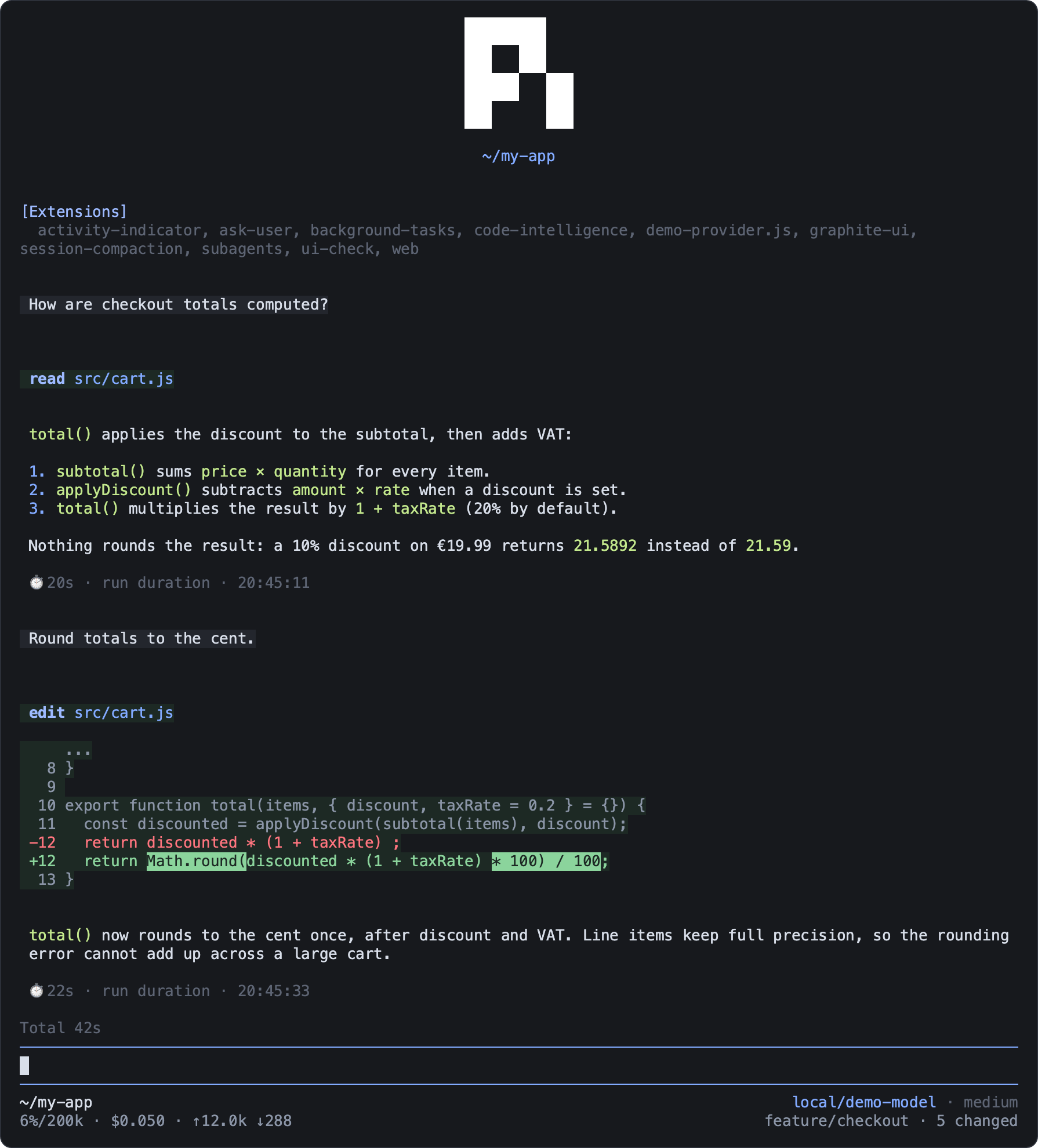

Graphite header, run durations, total and footer

pi install npm:@clement_chsn/pi-graphite-ui

It applies automatically in the TUI and looks best in a truecolor terminal.

What it shows

  • Header: the Pi logo and the current directory, compact when the terminal is narrow.
  • Run timer: above the editor, the duration of the current run, the total of the branch from the second run, and the number of compactions (comp). Each finished run leaves its duration and end time in the conversation (⏱ 1m 42s · run duration · 14:08:08), without sending it to the model.
  • Footer: path, model and thinking level; context use (42%/200k), cost and tokens; Git branch and number of changed files. On a narrow terminal, context and cost win. Statuses from other extensions stay below.
  • Working indicator: an animated braille spinner.

With session-compaction, the context percentage turns blue once compaction is available and yellow past Pi's automatic threshold. With activity-indicator, the timer shares its line with the counts of background tasks and subagents.

Command

/graphite-ui toggles the custom header, footer and working indicator for the session (/graphite-ui on and off also work); the theme stays. /graphite-ui refresh rereads the Git status.

Good to know

  • Pi's native Context, Skills and Extensions sections need "quietStartup": false in ~/.pi/agent/settings.json. Pi may then briefly show its own header before Graphite's; quietStartup: true removes the flash but hides those sections.
  • Git status is read locally, without a shell, network or polling, after your inputs, tool calls and agent runs. A change made from another terminal while Pi is idle shows at the next of these, or with /graphite-ui refresh.
  • Tokens and cost add up the assistant messages of the active branch; they are not an invoice.
  • The timer total survives compactions, reloads, resumes and forks, and follows the branch you select with /tree.
  • An extension that installs its own footer replaces Graphite's: Pi shows one custom footer.
